Rackmount 3U Custom Server COTS Xeon
Rackmount 3U Custom Server COTS Xeon
Rackmount 3U Custom Server COTS Xeon
Rackmount 3U Custom Server COTS Xeon

Rack mount 3U Server

Nedtek Computer Solutions Inc.

$2,859.00 Sale

Motherboard Specifications:

  • Supermicro X11DPL-i
  • Intel C621 Chipset, QPI up to 10.4 GT/s
  • Dual socket (LGA 3647) Supported
  • Up to 1.0TB RAM using LRDIMM / 512GB RDIMM RAM, ECC DDR4 2666MHz (8XDIMM Slots)
  • Dual GbE LAN ports via Marvell 88E1512 PHY
  • 10 x SATA3 (6Gbps) port, RAID 0,1,5,10
  • 2 PCI-E 3.0 x16, 3 PCI-E 3.0 x8, 1 PCI-E 3.0 x4 (in x8 slot)
  • 2 Interface: PCI-E 3.0 x4 M.2 Form Factor: 2260, 2280
  • 4 USB 2.0 ports (2 rear + 2 headers),
  • 3 USB 3.0 ports (2 headers + 1 Type A)
  • 1 VGA port, 1 COM Port (1 header)

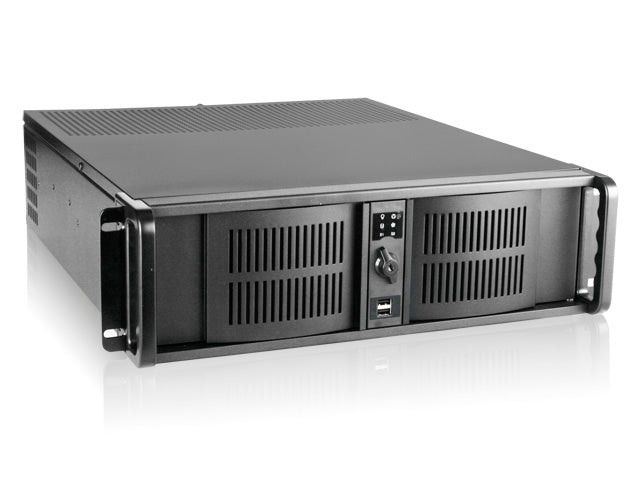

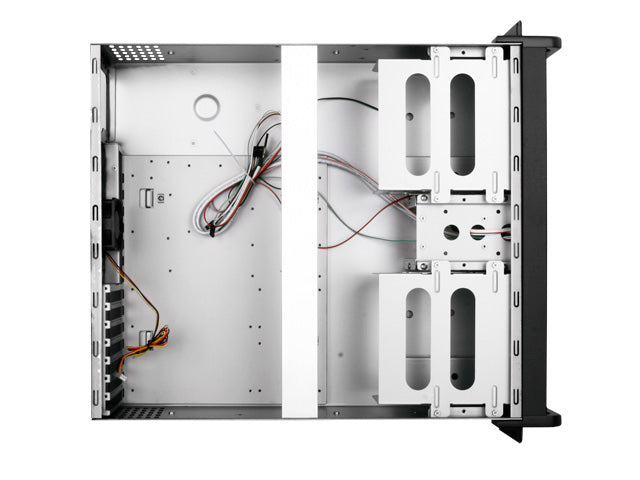

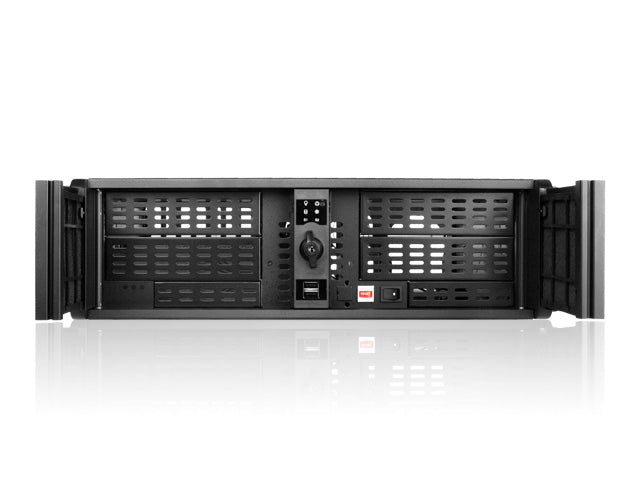

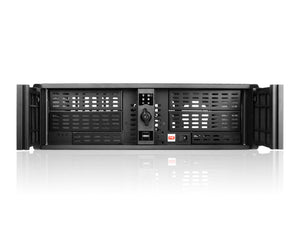

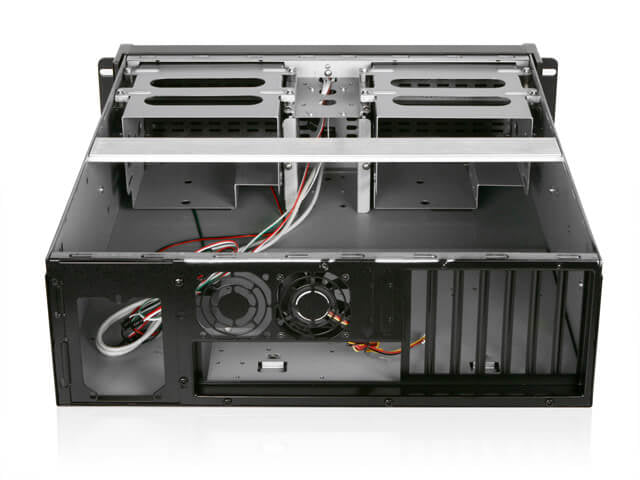

Chassis Specifications:

  • Light Weight Ruggedized Rack-mount - 3U – 20”Deep
  • Dimensions: (WxHxD) 19'' x 5.25'' x 20.8''
  • Drive Bays: 2 x 3.5'', 4 x 5.25''
  • Drive Bays internal: 1 x 3.5''
  • Aluminum Front
  • Front Doors Lockable
  • Anti-Vibration Dampers on all drive mounts and cages
  • Loctite Thread locker Blue 242 Adhesive used on all screws
  • Power and HDD LED
  • Power and Alarm Reset Switch
  • Removable Air Filters
  • Short Handle for Space Constraints
  • Two High Velocity Cooling Fans (Thermal Controlled)
